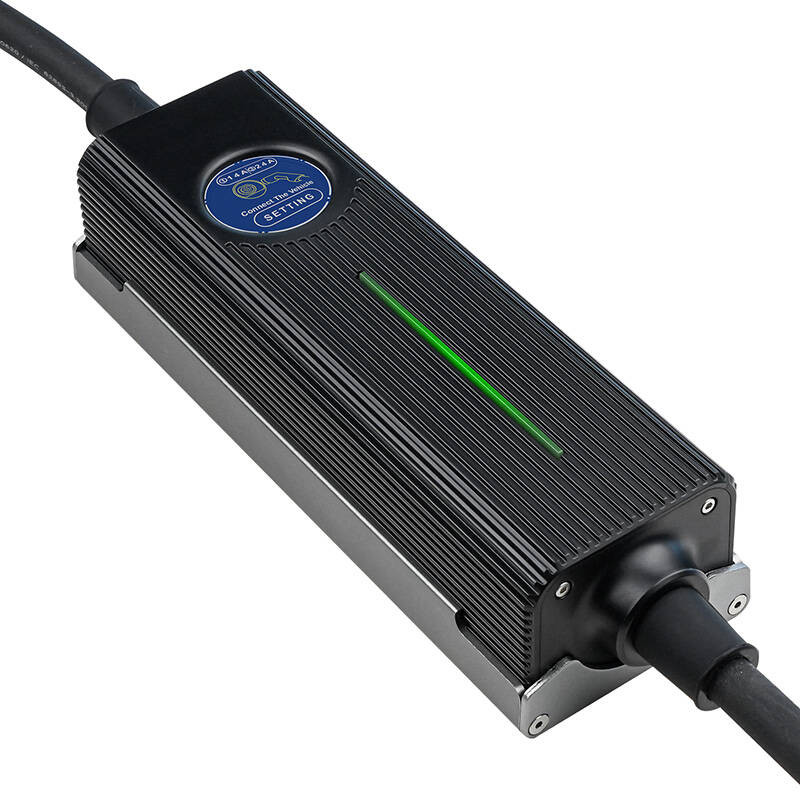

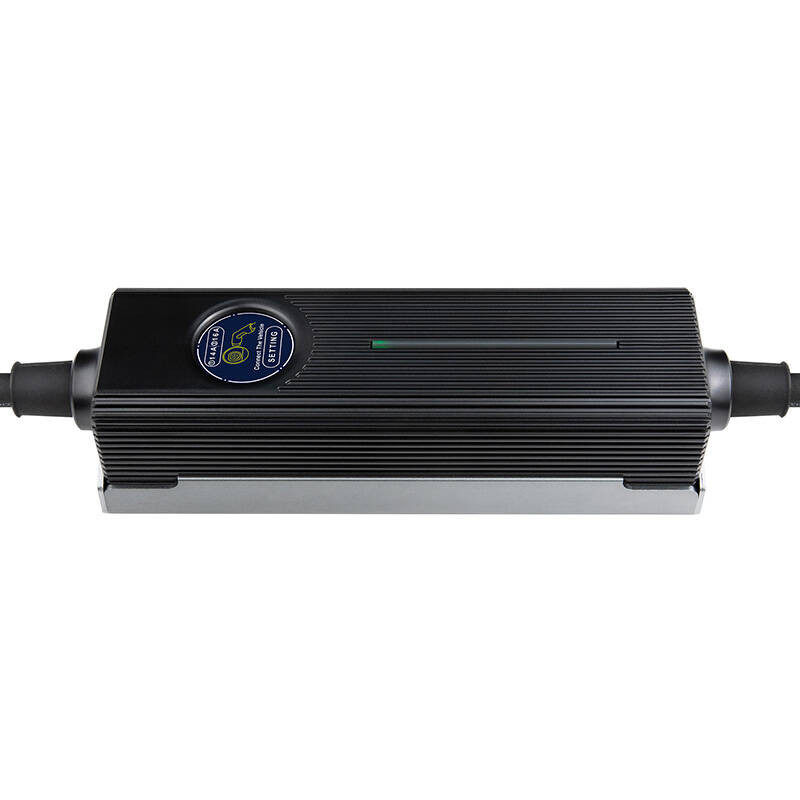

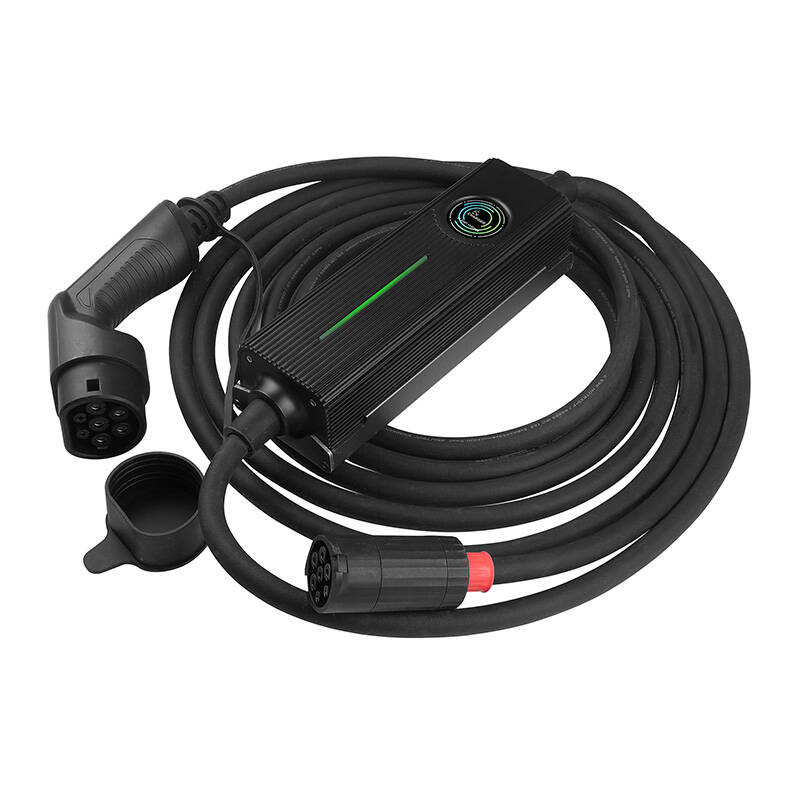

Besen PCD050 portable charger for electric cars.
Charge your car quickly and conveniently. Besen PCD050 supports both single-phase and three-phase charging. It offers functions such as adjusting the current, setting the charging time, and enabling the charging delay. Operation and monitoring of the charging process is enabled by an LCD display, and special adapters will prove useful when you don't have access to a dedicated charging station.
Fast and convenient charging of your vehicle
Besen PCD050 uses an output power of 16 kW, which significantly reduces charging time - perfect for long trips. In addition, with single-phase and three-phase charging capabilities, the PCD050 adapts to your needs.
Advanced safety features
The PCD050 charger is equipped with advanced safety features that protect your device and vehicle from various electrical hazards. This includes protection against under-voltage, over-charge, short circuit, overheating and lightning. In addition, a built-in Type A+6mA DC RCD system provides additional protection against electrocution, making it safer to use.
Intuitive operation
The Besen PCD050 has an LED indicator and LCD touchscreen displaying charging status, making it easy to monitor the process. The device offers functions for setting charging time and time delay, allowing you to precisely schedule charging sessions. This allows you to customize the charging schedule to suit your needs, optimizing power consumption and maximizing efficiency.
Durability and weather resistance
Designed for durability and resistance to harsh conditions, the Besen PCD050 features an IP66 rating for superior protection against dust and water. With an operating temperature range of -25°C to 55°C and a humidity tolerance of 5% to 95%, the device can be used in a variety of climatic conditions without problems.
Energy efficiency and compliance with standards
The PCD050 features low standby power consumption of less than 8 watts, helping to reduce operating costs. The device is CE and RoHS certified, confirming its compliance with European safety standards and care for the environment. The robust design and modern technologies used in the Besen PCD050 make it a reliable electric car charging solution that combines high performance with safety and comfort.

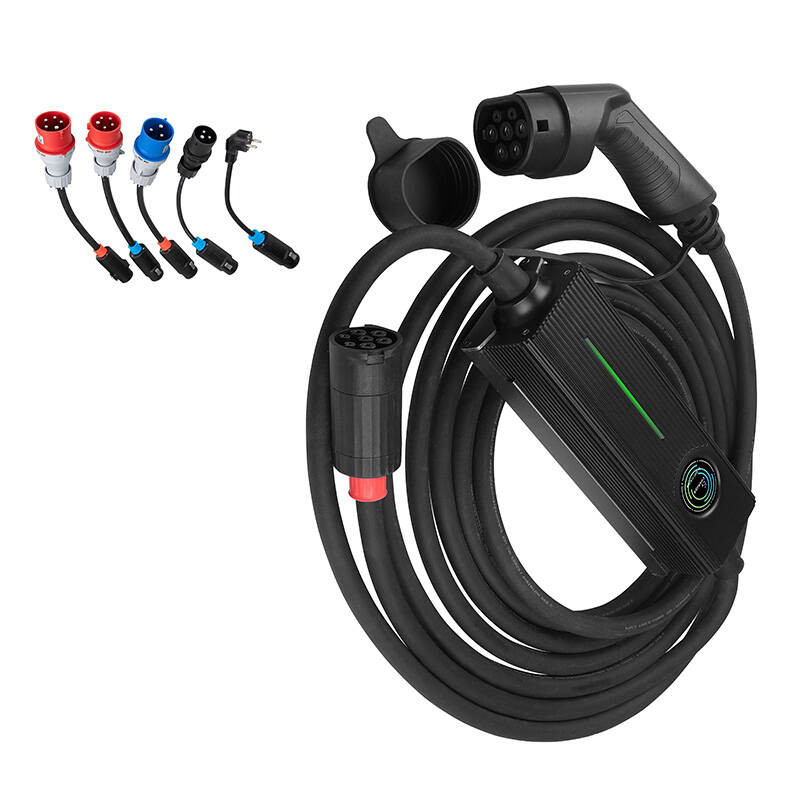

Included
- charger

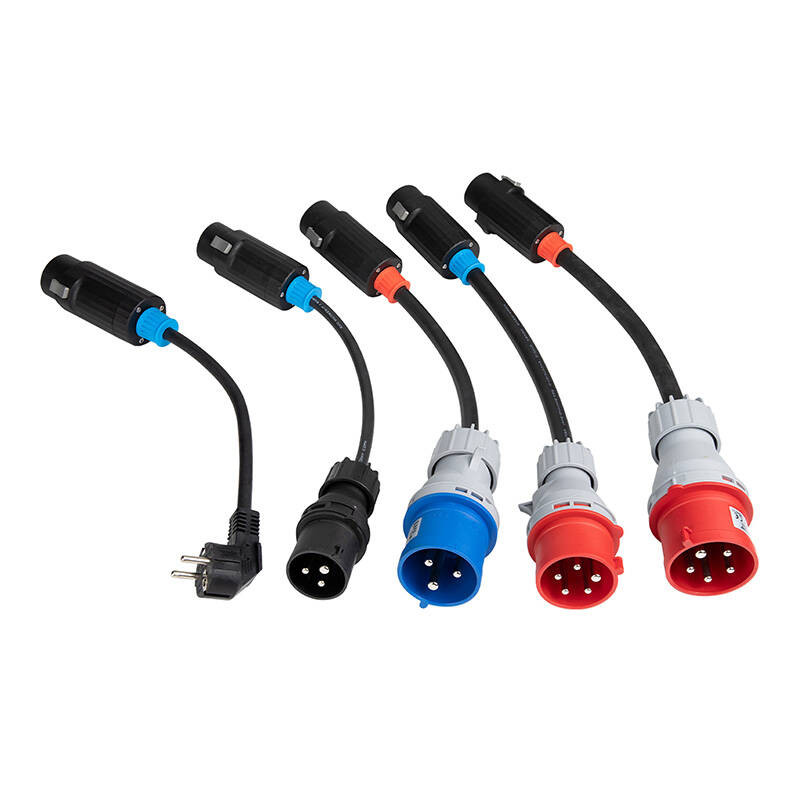

CEE red adapter MAX 32A (three-phase)
CEE adapter black MAX 16A (single-phase)
CEE adapter blue MAX 32A (single-phase)
CEE adapter red MAX 16A (three-phase)
UK plug MAX 13A
SCHUKO plug MAX 16A
| Manufacturer | Besen |
|---|
| Model | PCD050 |
|---|
| Input voltage / output voltage | AC 230V / 400V |
|---|
| Input frequency | 47 ~ 63Hz |
|---|
| Output power | 1-phase up to 7.2 kW (MAX 32 A), 3-phase up to 16.5 kW (MAX 24 A) |
|---|
| Max. output current | 32A for 1 phase / 24A for 3 phase |
|---|
| Terminal connection | CEE red MAX 32A (3-phase) / CEE black MAX 16A (1-phase) / CEE blue MAX 32A (1-phase) / CEE red MAX 16A (3-phase) / UK plug MAX 13A / SCHUKO plug MAX 16A |
|---|
| Connector type | IEC 62752: 2016 |
|---|
| Degree of protection | IP66 |
|---|
| Protection | Under-voltage protection / over-voltage protection / short-circuit protection / overheat protection / lightning protection |
|---|
| RCD | Type A+6mA DC |
|---|
| Ambient temperature | -25°C ~ 55°C |
|---|
| Ambient humidity | 5% - 95% |
|---|
| Maximum altitude | <2000 m |
|---|
| Power consumption in standby mode | <8 W |
|---|
| Certifications | CE / RoHS |
|---|
| Ethernet/WIFI/4G/Bluetooth | No |
|---|
| LED indicator | Yes |
|---|
| LCD display | No |
|---|
| LCD touch screen | Yes |
|---|
| Time setting | Yes |
|---|
| Time delay setting | Yes |
|---|
| Dimensions | 300 x 66 x 86 mm |
|---|
| Weight | 12 kg |
|---|
